Industry Solutions — Manufacturing
GstarCAD Mechanical
Automated and intelligent CAD tools, quicker mechanical designing and drawing
Windows

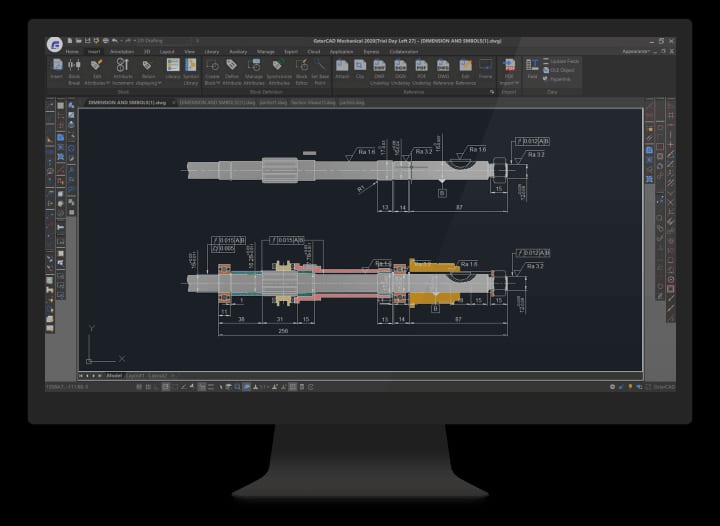

About GstarCAD Mechanical
Automated and intelligent CAD tools, quicker mechanical designing and drawing
Covering all fields of mechanical design, GstarCAD Mechanical is professional designing and drawing software specially built for manufacturing. No matter what design task you face, GstarCAD Mechanical helps complete your ideas perfectly. Fully compatible with standard mechanical CAD (ACM) drawings.
Request a Demo
Key features
What GstarCAD Mechanical delivers
Mechanical CAD Compatible
Bidirectional data exchange with standard mechanical CAD. Modify the data and send it back — mixed-use is a reality.
100+ Intelligent Design Tools
Practical mechanical drafting tools in a standardized, intelligent environment that cuts repetitive work.
Extensive Standards Library
Libraries for different standards, with all parts and symbols from CADProfi. Customize standards, symbols and features.
Cost-Effective
The same design capability as premium mechanical CAD on a perpetual license — no subscription.
Deep dive

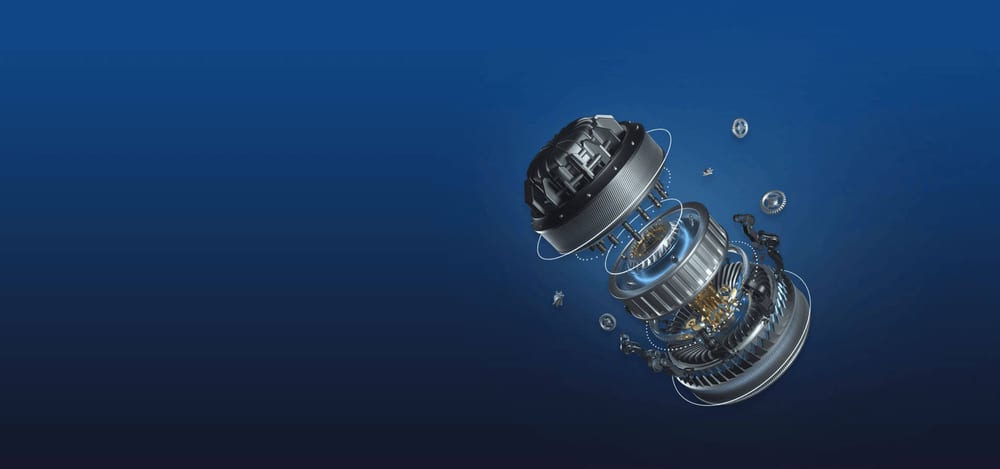

Mechanical CAD Compatibility
- Bidirectional data exchange with standard mechanical CAD
- Modify ACM data and return it to the mechanical CAD workflow
- Smooth data transfer enables mixed-use environments
- Full comparison table available on request
Deep dive
Intelligent Design Environment
- 100+ mechanical-specific designing and drawing tools
- Standardized design environment reduces repetitive tasks
- Customizable — build your own templates and automate common tasks
- Personal working-habit profiles supported
GstarCAD MechanicalImage coming soon
Licensing
Own it — on your terms
Perpetual License
Own the perpetual right to use — more convenient than subscription CAD. Buy once, keep working.
Multiple Licensing Modes
Serial number or USB dongle. Stand-alone or network licensing to suit any team size.
Flexible Upgrade
Upgrade each version or keep your current one — your perpetual license stays valid either way.
Industries served
ManufacturingMechanicalIndustrial Design
Ready to transform your engineering workflow?
Talk to a Cairo-based engineer about the right fit for your team — directly, on a project like yours.
